Eli-Flex is a two part polyurethane resin formulated to effect quick and easy conveyor belt repairs
Eli-Flex is available both in paste and liquid forms. These have been formulated for applications on vertical or horizontal surfaces for instant conveyor belt and rubber repair e.g. holes,tears, splits, cracks, sealing joints, preventing spillage, covering metallic fasteners, repairing marine fenders and floating hoses. Eli-Flex is designed to be applied with a spatula or a similar tool. After a few hours the cured product achieves physical properties similar to the conveyor belt rubber cover.
There is also an Eli-Flex Adhesion Promoter to aid the adhesion of Eli-Flex in difficult conditions, Eli-Bond FR704 is a one-part, brush-on adhesion promoter that strengthens and enhances the bond of polyurethane resins to specific rubbers, concrete, metals, steels and fabric carcass. Please see TDS and SDS below.
The product range has enjoyed rapid growth worldwide in the last few years, this marketing success can be attributed to the following unique properties:
- Quick setting
- Easy application - designed to be used on site with minimal tools
- Excellent flexibility
- High tear & impact resistance
- Good wear and abrasion resistance
- Flame retardant
- Low irritation potential
- Easy to use twin pack mixing & application system
Pack sizes |
|
| Eli-Flex Paste | Eli-Flex Liquid |
| 100g | 150g |
| 150g | 300g |
| 150g | 1 kg |
| 300g | |
| 500g | |
Application video for Eli-Flex Conveyor Belt & Rubber Repair Resin
Additional Videos
https://www.youtube.com/watch?v=cQWOvkLgsmM&t=33s Eli-Flex Missing Filler Strip
https://www.youtube.com/watch?v=tVjnWqVtpWU&t=45s Eli-Flex Mechanical Splice Seal
https://www.youtube.com/watch?v=Vtv7jitHIZw Eli-Flex Lateral Edge Damage
https://www.youtube.com/watch?v=TUZKjbfbc5I&t=16s Eli-Flex Repairing an L shaped Gouge
https://www.youtube.com/watch?v=NA3COaYNhQg Eli-Flex Repair Circular Hole
Specifications |
|
| Mix ratio | by weight: 100 parts resin to 22 parts hardener by volume: 100 parts resin to 18 parts hardener |
| Surfaces | canvas, wood, MDF & glass |
| Curing time | touch dry in 4/5 hours at 23°C |
| Coverage | 1 litre of the mixed product will cover 2m²@ 0.5 mm thick (1kg = 1 litre) |
| Pot Life | 10 - 15 minutes at 23°C |
| Shelf life | 24 months in sealed containers |
Conveyor Belt Application

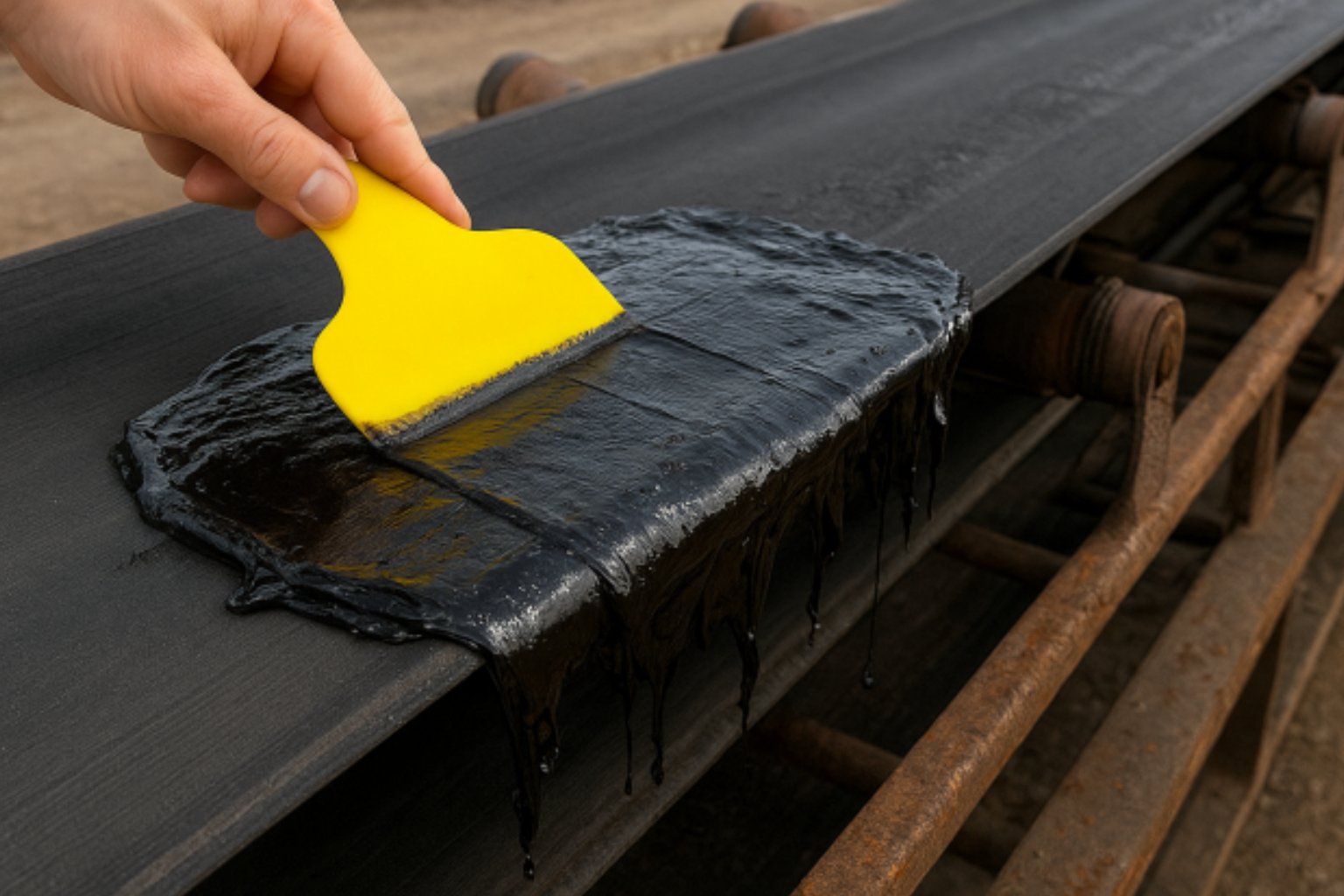

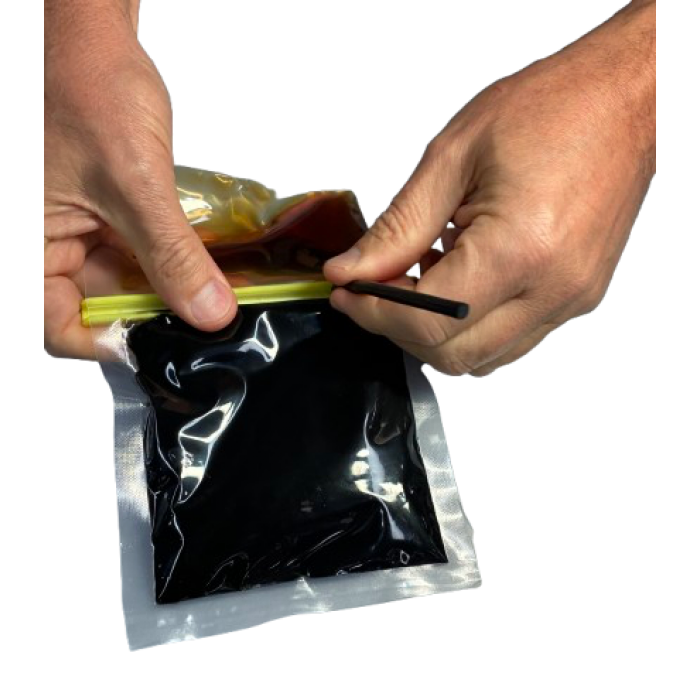

Eli-Flex can be used on all types of rubber and PVC conveyor belts, this includes fabric carcass, steel cable and steel cored belts. Simply open the pre-filled pouch, remove the separator clip, knead the two parts together for 2 minutes, cut a corner and pour. Smooth the resin into the repair with the spatula provided.
Ancillary Application
Industrial tyre repair, vehicle anti-roll bar repair, general rubber rebuilding, rubber castings, rubber repair, mouldings, cable-entry sealing, marine fender repair, floating hose repair, watertight insulation, expansion joints, anti-vibration pads etc.
Eli-Flex Technical Data Sheet PDF
Eli-Flex SDS PDF
Eli-Bond FR704 instructions PDF
Eli-Bond FR704 SDS PDF
Eli-Flex Conveyor Belt & Rubber Repair Resin
- Brand: Eli-Chem
- Product Code: *This item is only sold through distributors, please contact us.
- Availability: Out Of Stock
Tags: Eli-Flex, conveyor belt repair, conveyor belt, rubber repair resin, PVC belt repair, FR909/N60, FR704
